Cryofab CMSH Series Piping Schematic

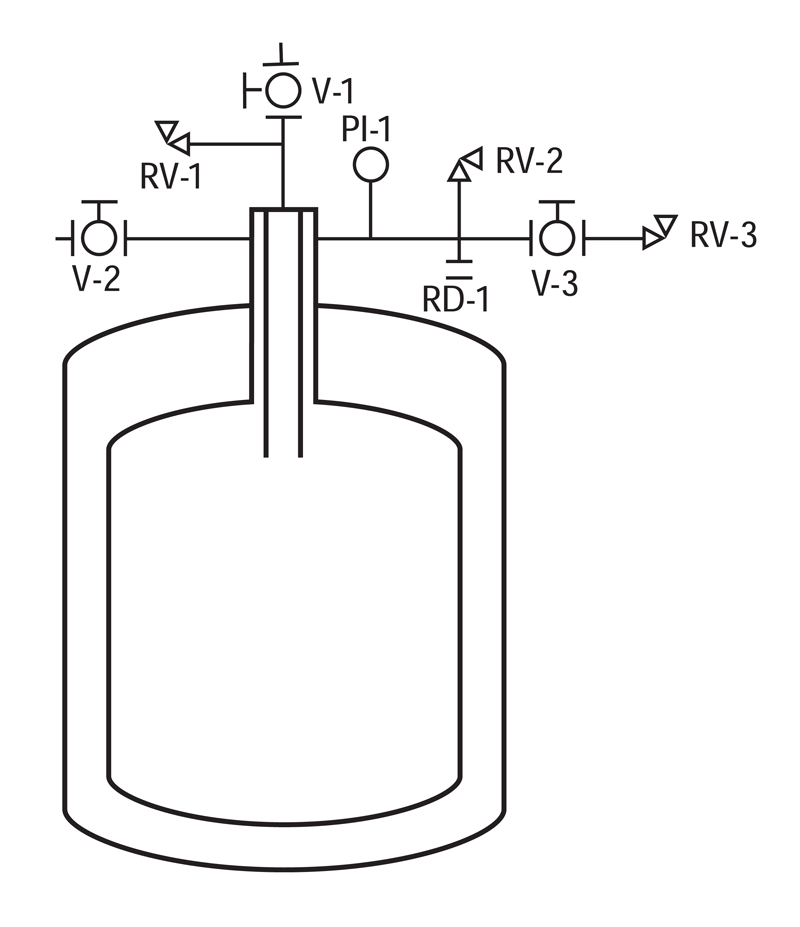

liquid helium dewar piping schematic Cryofab CMSH Series

Symbol Description
V-1 Liquid Valve
V-2 Vent Valve
V-3 Isolation Valve
RD-1 Rupture Disk*
RV-1 Relief Valve, 15 PSI
RV-2 Relief Valve, 10 PSI
RV-3 Pressure Control Valve, .5 PSI
PI-1 Compound Pressure Gauge 30″ Hg-0-15 PSI

*Only on capacities 200 Liters and greater.
